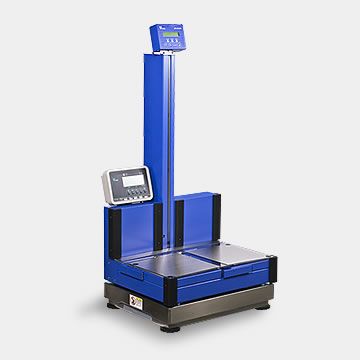

Digi SPK-1000 Series
The SPK-1000 automatically measures the length, width, height and weight of packages placed on its platform. It is ideal for measuring suitcases and packages in places such as airports, hotels, warehouses, and distribution centers. An RS-232C interface is a standard feature, making it easy to send data to computers and external printers. Helps improve work efficiency in any place requiring measurement of packages..
|Measuring range||Width: 20 to 94 cm, Depth: 15 to 54 cm, Height: 3 to 64 cm, Increment: 0.2 cm（0 to 10 cm）, 0.5 cm（10 cm and over）|
|Weighing (option)||Capacity: 300 kg, Increment: 50 g, Weight sensor: loadcell|
|Load capacity||Max. 50 kg|
|Physical dimensions (mm)||W: 540 x D: 485 x H: 1000|
|Net weight||17 kg|
|Operating Temperature||0 to 40 degrees C (no condensation)|
|Power supply||AC100-240V（50/60Hz）, 1.2A|
Compact, yet provides a wide measurement range.
Fitting into an area measuring just 54 cm wide by 48.5 cm deep, the system nonetheless has a measurement range of up to 94 cm wide by 54 cm deep. This compact unit's ability to measure large packages is made possible by the arm sensor module developed by DIGI.
